MK UWB solutions - Evaluation and development tools

MobileKnowledge is the first worldwide provider of a set of evaluation and development tools around UWB Trimension^TM technology from NXP Semiconductors for IoT devices, enabling all kinds of use cases with precise, secure and accurate positioning data of objects in real time.

MK UWB Kit SR150/SR040

The most comprehensive reference design and development platform for UWB-based IoT solutions

If you want to design your UWB solution or integrate UWB connectivity into your existing solution leveraging on NXP Trimension^TM technology the MK UWB Kit SR150/SR040 provides you a complete set of hardware and software tools as well as documentation and support from MobileKnowledge to get you started quickly and accelerate your time to market.

Experience UWB technology with ready-to-run demonstration apps, Arduino-connected development boards and software libraries to start prototyping and developing your own UWB applications with minimum effort.

Leverage on our powerful software tools such as the MK UWB Toolbox Android application to develop innovative mobile applications, the MK UWB PC Shell application to obtain ranging information on any host computer, the MK UWB Library which provides a simple to use but powerful API for your IoT embedded solution and out-of-the-box support for NXP QN9090 and Nordic nRF 52840 MCUs.

• UWB Tag SR040, featuring NXP’s UWB chipset Trimension SR040 and a BLE-enabled MCU
• MK UWB Shield + MK UWB 3D Antenna board, a fully integrated solution based on pre-certified module SR150 supporting 3D position information
• Out-of-the box support for QN9090 and Nordic nRF 52840 MCUs
• Trimension SR040 module and development setup using MK UWB Arduino shield
• HW design files for UWB Tag SR040 and for SR150 antenna board
• MK UWB Library exposing a simple to use but powerful API that abstracts both Bluetooth LE and UWB HW
• MK UWB PC Shell, a PC application to support data logging and evaluation of UWB ranging data
• MK UWB Toolbox, the reference Android application
• Reference UWB use cases (Distance alert, Tracker)
• Quick Start Guide, User Manuals, UWB Modules datasheets, MK UWB SDK porting guidelines, Application Note for AoA
• Distance alert use case, showcasing how to easily implement contextual actions based on proximity using UWB technology and NXP Trimension UWB ICs
• Tracker use case, showcasing how you can leverage UWB ranging and AoA, NXP Trimension UWB ICs and MK UWB SDK, to track the 2D position of UWB-enabled devices or tags
• 16 different code examples as part of NXP UWB IoT software
• Exclusive Online training
• 1st line support on kit content and use cases

Check details at: MK UWB Kit SR150/SR040

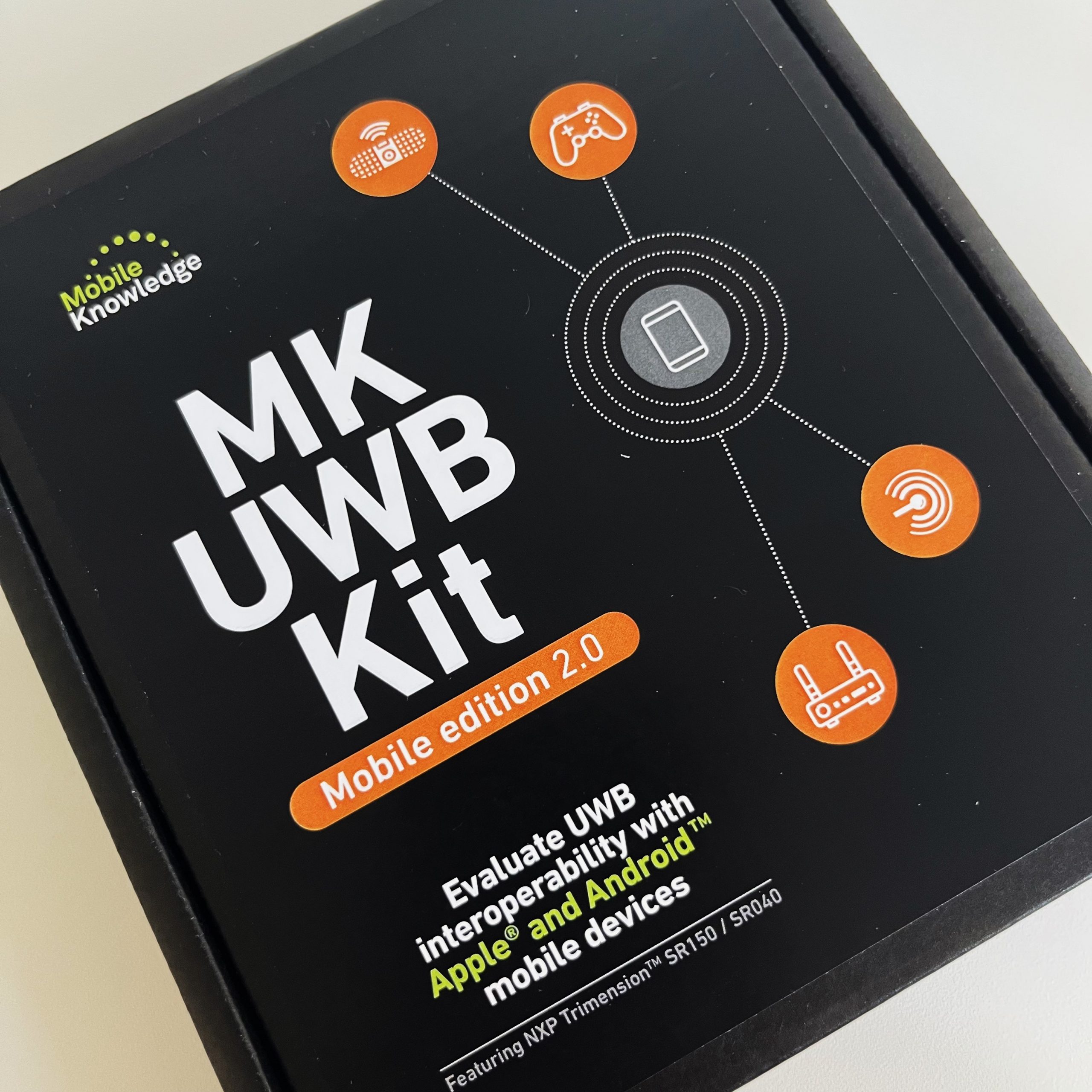

MK UWB Kit Mobile edition 2.0

Evaluate UWB interoperability with Apple® and Android™ mobile devices

Kick-start the design of your innovative applications by leveraging on the sample iOS and Android applications developed by MobileKnowledge and unleash UWB ability to create more precise, spatial-aware application experiences.

Ready for evaluation of Apple’s Nearby Interaction framework with 3rd party accessories.

• Experience how to establish a UWB ranging session between a UWB-enabled Apple^® or Android^TM smartphone and a UWB anchor or UWB tag based on NXP’s Trimension^TM UWB IoT ICs
• Leverage on the background operation mode for mobile devices to build hands-free interactions with nearby smart objects.
• Obtain the MK UWB Connect application source code for Apple^® or Android^TM devices as well as the reference source code for SR150 UWB Anchor and SR040 UWB Tag software to interoperate against mobile devices.
• Receive exclusive support from MobileKnowledge to accelerate the evaluation and development of UWB technology-based solutions.

Check details at: MK UWB Mobile edition 2.0

MK UWB Kit RTLS

The reference design and development platform for indoor UWB RTLS solutions based on TDoA.

TDoA can be used to determine a device position by measuring the time it takes for a UWB signal to be received at several fixed anchor devices placed in the monitored environment.

Experience firsthand the numerous advantages of UWB for real-time positioning and use the tools and examples included in the kit to kick-start the development of your own RTLS solution based on NXP’s Trimension^TM UWB ICs.

Experience how to track one or more UWB-enabled tags using fixed anchor devices leveraging on TDoA-based real-time positioning and leverage on our software demo to experience first-hand the capabilities of the technology.

• MK UWB Anchor RTLS, as the back bone infraestructure of the RTLS system to track UWB tag devices
• UWB Tag SR040, acting as tracked devices in the RTLS infraestructure
• MK UWB RTLS demo collects the TDoA data from the anchors and executes the multilateration algorithm to compute the real time location of the tracked devicce.

Check details at: MK UWB Kit RTLS
