The most comprehensive reference design and development platform for UWB-based IoT solutions.

1.800

* For any Additional components please contact us

Product brief
MK UWB Kit SR150/SR040

The MK UWB Kit SR150/SR040 is the most comprehensive reference design and development platform for UWB-based IoT solutions.

Leverage on UWB technology advanced functionalities and benefit from NXP TrimensionTM SR150 and TrimensionTM SR040 UWB IC capabilities.

Experience UWB technology with ready-to-run demonstration apps, Arduino-connected development boards and software libraries to start prototyping and developing your own UWB applications with minimum effort.

Leverage on our powerful software tools such as the MK UWB Toolbox Android application to develop innovative mobile applications, the MK UWB PC Shell application to obtain ranging information on any host computer, the MK UWB Library which provides a simple but powerful API for your IoT embedded solution and out-of-the-box support for NXP QN9090 and Nordic nRF 52840 MCUs.

Hardware elements

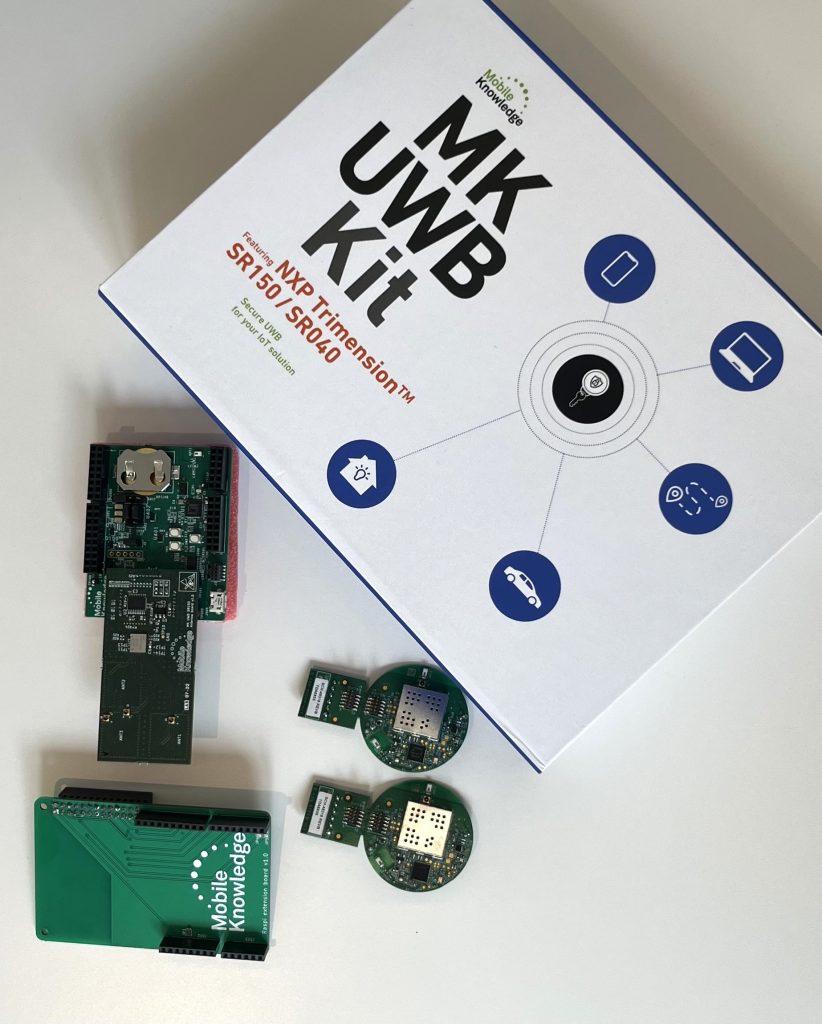

  • UWB Tag SR040, featuring NXP’s UWB chipset Trimension SR040 and a BLE-enabled MCU
  • MK UWB Shield + MK UWB 3D Antenna board, a fully integrated solution based on pre-certified new module SR150 from Amotech supporting 3D position information
  • Out-of-the-box support for QN9090 and Nordic nRF 52840 MCUs
  • Trimension SR040 module and development setup using MK UWB Arduino shield
  • HW design files for UWB Tag SR040 and for MK UWB 3D Antenna board

Software elements

Forget about low level implementation details and focus on your application development.

  • MK UWB Library exposing a simple to use but powerful API that abstracts both Bluetooth LE and UWB HW
  • MK UWB PC Shell, a PC application to support data logging and evaluation of UWB ranging data
  • MK UWB Toolbox, the reference Android application

Or use low level UWB IoT software drivers from NXP to implement your own use cases and solution.

Reference Use Cases

  • Reference UWB use cases (Distance alert, Tracker)
  • Quick Start Guide, User Manuals, UWB Modules datasheets, MK UWB SDK porting guidelines, Application Note for AoA
  • Distance alert use case, showcasing how to easily implement contextual actions based on proximity using UWB technology and NXP Trimension UWB ICs
  • Tracker use case, showcasing how you can leverage UWB ranging and AoA, NXP Trimension UWB ICs and MK UWB SDK, to track the 2D position of UWB-enabled devices or tags
  • 16 different code examples as part of NXP UWB IoT software

Support Services

  • Exclusive Online training
  • 1st line support on kit content and use cases
  • Do more through our UWB Engineering services to help you reduce your time to market and focus on your own UWB solution development

Experience the UWB technology with ready-to-run demonstration apps, development boards and SW libraries to start developing your own UWB application with minimum effort

UWB Tag SR040

Autonomous, battery-powered UWB device that features NXP's UWB chipset TrimensionTM SR040 and a BLE-enabled microcontroller, enabling all kinds of tracking and localization use cases.

UWB SR150 Module
UWB SR040 Module
UWB SR040 Module

UWB Module

Compact UWB transceiver based on NXP’s UWB chipset Trimension SR150 / Trimension SR040. It allows a quick integration of UWB capabilities into any design by using it as a component.

MK UWB SR150 Anchor 3D: MK UWB Shield 2

Flexible platform to develop customized UWB systems. As the central part of the UWB Kit, it is used as the interface between the UWB module and external devices. It can also be plugged to other development boards thanks to its Arduino-compatible expansion headers.

MK UWB Shield 2 gives support for FiRa-compliant secure ranging through SE051W.

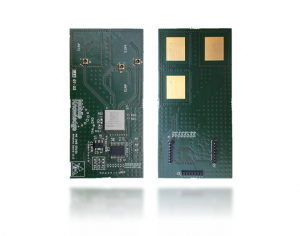

MK UWB SR150 Anchor 3D: MK UWB 3D Antenna board

UWB Module-compatible PCB that can be easily connected to the MK UWB Shield 2 supporting 3D Angle of Arrival measurements.

Ready-to-use solution that features three PCB antennas, enabling ranging, 2D, and 3D Angle of Arrival measurements as well as TDoA.
It can be easily connected to MK UWB Shield 2 and 1v3 using the board pin headers. Specific software and documentation is provided.

Now supporting 3D positioning!

SR040 Board

MK UWB SR040 board

UWB Module-compatible PCB that can be easily connected to the MK UWB Shield 2.

Ready-to-use solution that features a soldered UWB SR040 Module with an integrated antenna.

AoA Reference data

Channel 5 results

Short summary of the results available:

  • Improved measurement accuracy and stability versus previous antenna board
  • Angle of Arrival calibration applied
  • Effective both on Channel 5 and 9

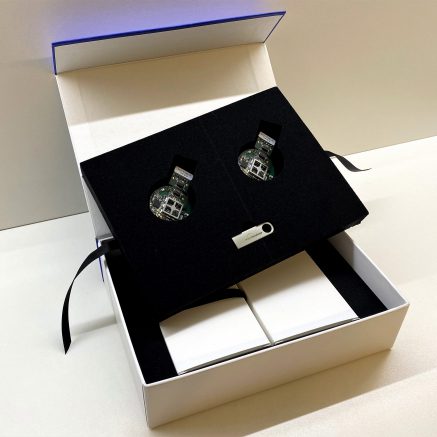

Besides the hardware components described, the MK UWB Kit SR150/SR040 also comes with a USB drive containing software and documentation resources.

Software materials

MK UWB SDK

The MK UWB SDK provides all the tools required to start developing UWB use cases for devices based on NXP TrimensionTM UWB chips. It contains several application examples and a ready-to-use MK UWB Library that allows you to focus on the development of the application logic instead of the low-level details of the hardware. It is delivered with out-of-the-box support for NXP QN9090 and Nordic nRF 52840 MCUs and can be easily ported to other platforms.

MK UWB Toolbox Android app

The MK UWB Toolbox Android application allows you to use a mobile phone to run the examples provided in the MK UWB SDK and visualize UWB ranging and AoA data.

MK UWB PC Shell app

The MK UWB PC Shell application allows you to use a Windows PC to run the examples provided in the MK UWB SDK and read UWB ranging and AoA data.

The MK UWB Library is a pre-compiled library that simplifies the development of UWB use cases for TrimensionTM SR040 and Trimension SR150 ICs. By importing the library in your project, you will have access to a simple, but powerful API to:

  • Initialize and deinitialize the UWB and BLE HW
  • Configure UWB ranging session parameters
  • Detect other UWB devices over BLE and start UWB sessions with those devices
  • Receive real-time distance and AoA notifications that can be handled by your application
  • Filter devices based on a whitelist or a blacklist

Documentation

Full set of documents to help you getting started with the UWB technology using the MK UWB Kit SR150/SR040 hardware and software content. Documentation provides step-by-step instructions to run off-the-shelf demo applications and use the development platform and software libraries to create your own UWB applications.

  • MK UWB Kit SR150/SR040 Quick Start Guide
  • MK UWB Tracker and distance alert User Manual
  • MK UWB SDK porting guidelines
  • MK UWB Shield 2 User Guide
  • MK UWB Tag SR040 User Guide
  • MK UWB 3D Antenna board Layout & Schematic
  • MK UWB 3D Antenna board eBOM
  • MK UWB SDK porting guidelines
  • Amotech SR040 Module datasheet
  • Amotech SR150 Module (ASMOP1BO0N21) datasheet
  • UWB Module migration guidelines
  • MK UWB Tag SR040 HW design files
  • RF marking documentation
  • AoA evaluation with MK UWB 3D antenna board
  • Add support of MK UWB Shield 2v0 to NXP UWB IoT Middleware
  • Run UWB IoT Middleware examples
  • MK UWB Kit SR150/SR040 Quick Start Guide for Nordic nRF52840
  • Online Training

Exclusive Online Training

Online training material including theory and hands-on exercises to master the content available in the kit and enable you to quickly focus on your applications. The training is divided into 4 online sessions divided into multiple sections, available to be viewed anywhere and anytime:

Online training
  • Session 1: MK UWB Kit introduction
  • Session 2: Hands on with the MK UWB Kit
  • Session 3: How to develop your solution using MK UWB Kit components
  • Session 4: How to integrate MK UWB Kit components to your system

You can get acces to the online training videos by clicking here.

Build your own UWB solution

MK UWB Kit Evaluation: Evaluate MK UWB Kit SR150/SR040 demonstrative applications, and identify the key technologies involved.
Get to know the UWB capabilities in less than a blink of an eye with our demos and test applications.

MK UWB Kit Development: Customize your firmware or mobile application. Integrate new hardware or peripherals using MK UWB Shield 2.
The MK UWB Kit SR150/SR040 comes with a complete development set to ease the integration and testing of the UWB Tag and UWB module into your own solution.

Want to do more?

MK UWB Engineering services

Long-standing expertise in UWB technology to help you reduce your time to market and focus on your own UWB solution development:

  • UWB technology consulting and support services: Guidance on use case definition and system integration, system architecture, software requirements, Q&A resolution, FIRA related process and use cases,…
  • Development of customized UWB use cases: embedded software development, mobile application software development, back-end integration, system integration,…
  • Design and development of customized antenna board based on customer requirements and constraints in order to optimize ranging and AoA measurements
  • Porting of MK UWB SDK into a customer platform, enabling MK UWB SDK software tools and functionalities on any customer platform that meets the SDK requirements
  • Licensing of MK UWB Library, for an easy integration of UWB technology while accelerating the time to market
